Overview

World’s lowest reading unit [d] 0.1 μg

Weighing range up to [Max] 6.1 g

The lowest minimum weight [USP] 0.3 mg

Automatic, draft-proof weighing chamber

Fully automatic levelling system

Wide variety of applications

Models

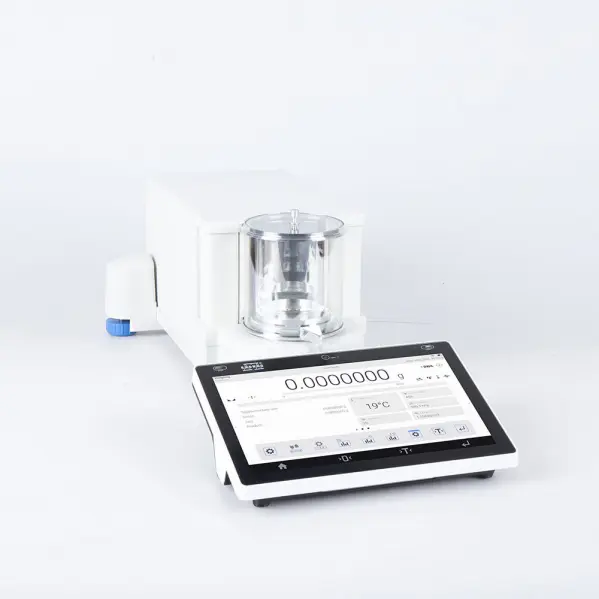

Radwag Uya 2.5Y Ultra-Microbalance

Permissible repeatability [5% Max]

0.35 µg

Weighing pan dimensions

ø16 mm

Weighing chamber dimensions

ø90×90 mm

Verification scale interval [e]

1 mg

Femto Price : $27,755.00 ~~$32,651.00~~

SKU : rw-wl-109-0001

View Details

Radwag Uya 6.5Y Ultra-Microbalance

Permissible repeatability [5% Max]

0.4 µg

Weighing pan dimensions

ø16 mm

Weighing chamber dimensions

ø90×90 mm

Verification scale interval [e]

1 mg

Femto Price : $32,775.00 ~~$38,554.00~~

SKU : rw-wl-109-0002

View Details

Permissible repeatability [5% Max]	0.35 µg
Weighing pan dimensions	ø16 mm
Weighing chamber dimensions	ø90×90 mm
Verification scale interval [e]	1 mg
Tare Range	-2.1 g
Standard repeatability	0.35 µg
Standard minimum weight	0.03 mg
Stabilization Time	10 - 20 s
Relative humidity change rate	±1%/h (±4%/8h)
Relative humidity	40% — 80%
Readability	0.1 µg
Power Supply	Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.4A max*
Permissible repeatability [Max]	0.6 µg
Adjustment	internal (automatic)
Packaging dimensions	655×755×445 mm
Operating temperature change rate	±0.3°C/1h (±1°C/8h)
OIML Class	I
Net Weight	9.1 kg
Minimum load	0.01 mg
Linearity ±	±1.5 µg
Leveling system	automatic - Reflex Level System
Gross weight	16.6 kg
Eccentric load deviation	1.5 µg
Delivery Components	Ultra-microbalance, terminal, weighing pan, weighing pan shield, glass lid, power supply, anti-draft shield, pincette, brush, fabric dust cover.
Communication Interface	USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot
Maximum Capacity	2.1 g

Permissible repeatability [5% Max]	0.4 µg
Weighing pan dimensions	ø16 mm
Weighing chamber dimensions	ø90×90 mm
Verification scale interval [e]	1 mg
Tare Range	-6.1 g
Standard repeatability	0.45 µg
Standard minimum weight	0.04 mg
Stabilization Time	10 - 20 s
Relative humidity change rate	±1%/h (±4%/8h)
Relative humidity	40% — 80%
Readability	0.1 µg
Power Supply	Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.4A max*
Permissible repeatability [Max]	0.8 µg
Adjustment	internal (automatic)
Packaging dimensions	655×755×445 mm
Operating temperature change rate	±0.3°C/1h (±1°C/8h)
OIML Class	I
Net Weight	9.1 kg
Minimum load	0.01 mg
Linearity ±	±1.5 µg
Leveling system	automatic - Reflex Level System
Gross weight	16.6 kg
Eccentric load deviation	1.5 µg
Delivery Components	Ultra-microbalance, terminal, weighing pan, weighing pan shield, glass lid, power supply, anti-draft shield, pincette, brush, fabric dust cover.
Communication Interface	USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot
Maximum Capacity	6.1 g

Ultra-Microbalance Uya 5Y

Automatic levelling Automatically open weighing chamber

Price Range

Overview

World’s lowest reading unit [d] 0.1 μg

Weighing range up to [Max] 6.1 g

The lowest minimum weight [USP] 0.3 mg

Automatic, draft-proof weighing chamber

Fully automatic levelling system

Wide variety of applications

Models

Maximum Capacity

Tare Range

Standard repeatability

Standard minimum weight

Permissible repeatability [5% Max]

Radwag Uya 2.5Y Ultra-Microbalance

Radwag Uya 6.5Y Ultra-Microbalance
