Overview

Designed for a wide range of Legal-for-Trade applications, the Class ll and Class III certified SJX Carat and Gold balances are ideal for weighing jewelry, precious metals and gemstones. Equipped with superior overload protection, large backlit display, fast stabilization time, multiple weighing units, application modes and connectivity options, these slim balances offer a truly user-friendly weighing experience.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Totalization, Density Determination, Display Hold

Display

Liquid crystal display (LCD) with backlight

Operation

AC Adapter (Included) or 4 AA Batteries (Not included)

Communication

RS232, USB Host, USB Device, Ethernet or Bluetooth™ (available as an accessory)

Construction

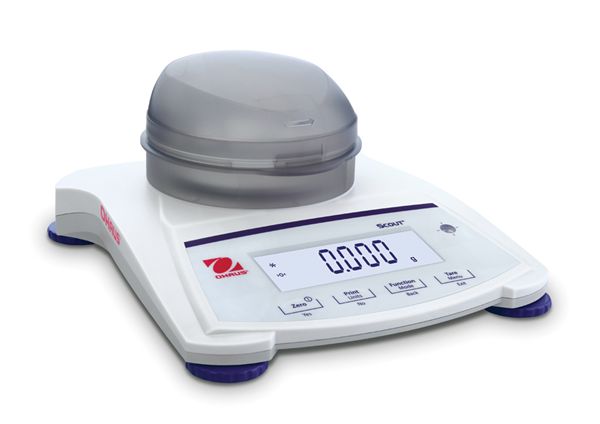

ABS housing, stainless steel pan, ABS draftshield (1mg model only), weigh below hook, transportation lock, manual calibration lock switch, security slot, adjustable leveling feet, illuminated up-front level indicator

Design Features

Stability indicator, mechanical and software overload/underload protection, low battery indicator, auto shut-off, auto tare, scoop and weight on 64g model

Specifications

Accuracy (Class)	II
Auxiliary Display Model	Large backlit LCD
Battery Life	80 Hours with Disposable Batteries
Maximum Capacity	3.3 lb (1,500 g)
In Use Cover	Available as an Accessory
Legal for Trade	NTEP Certified; Measurement Canada Approved
Linearity ±	0.03 g
Net Weight	2.2 lb (1 kg)
Pan Construction	Stainless Steel
Pan Size	5.5 in x 6.7 in (140 mm x 170 mm)
Certified Readability	0.0005 lb (0.1 g)
Repeatability	0.02 g
Stabilization Time	1.5 s
Tare Range	To capacity by subtraction
Transportation Case	Available as an Accessory
Units of Measurement	Ounce Troy; Pennyweight; Grain; Gram; Kilogram; Pound; Carat; Ounce
Working Environment	50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
