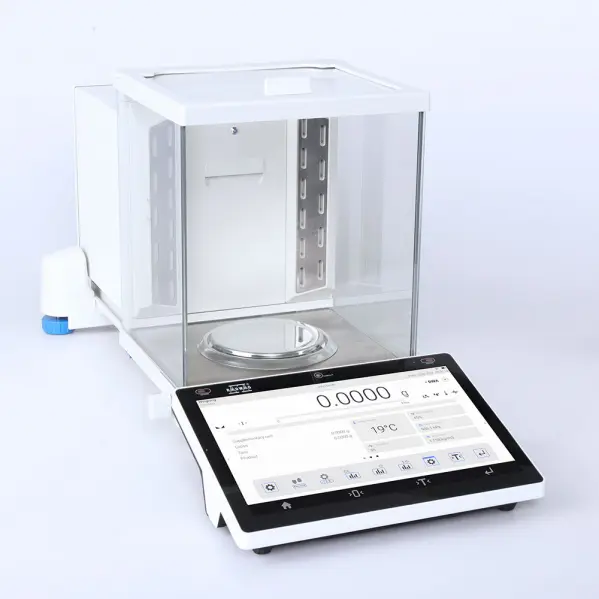

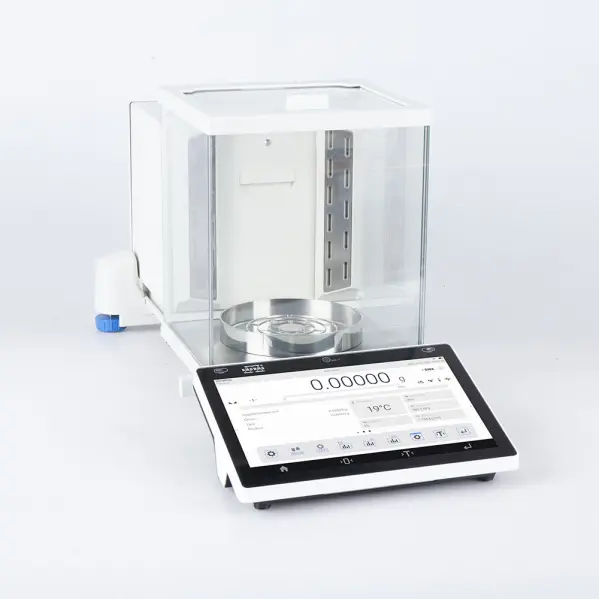

Overview

Reading unit [d] 0.01 mg

Minimum weight: 10 mg

Conditioning shelf

Open-work weighing pan

Tool-free disassembly of the chamber

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

Specifications

Adjustment	internal (automatic)
Maximum Capacity	310 g
Communication Interface	USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi<sup>®</sup>, Hotspot
Delivery Components	Analytical Balance, weighing pan, weighing pan shield, brush, fabric dust cover, power supply, hook for under-pan weighing.
Eccentric load deviation	0.3 mg
Gross weight	19.1 kg
Leveling system	automatic - Reflex Level System
Linearity ±	±0.3 mg
Minimum load	10 mg
Net Weight	14.7 kg
OIML Class	I
Operating temperature change rate	±0.3°C/1h (±1°C/8h)
Packaging dimensions	435 x 885 x 540 mm
Permissible repeatability [5% Max]	0.07 mg
Permissible repeatability [Max]	0.15 mg
Power Supply	Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A<br> Balance: 12 – 15V DC 1.6A max*
Readability	0.1 mg
Relative humidity	20% — 80%
Relative humidity change rate	±1%/h (±4%/8h)
Stabilization Time	1.3 s
Standard minimum weight	10 mg
Standard repeatability	0.1 mg
Tare Range	-310 g
Verification scale interval [e]	1 mg
Weighing chamber dimensions	170×200×220 mm
Weighing pan dimensions	ø100 mm
