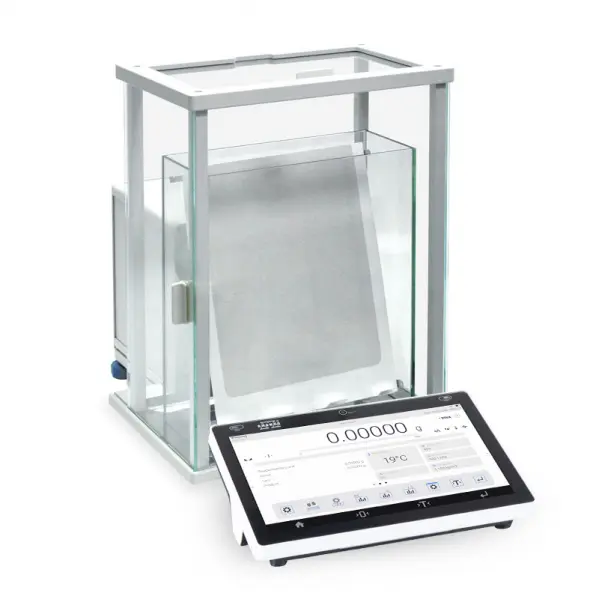

Analytical Balance For Filters Xa 5Y.f

Internal chamber for filter weighing Semi-automatic leveling Manually opened weighing chamber

Price Range

$7,700.00 - $7,990.00

View All Models

Overview
Models

Overview

Reading unit [d] 0.01 mg

Minimum weight: 10 mg

Conditioning shelf

Open-work weighing pan

Tool-free disassembly of the chamber

Models

Radwag Xa 52.5Y.f Analytical Balance

Packaging dimensions

510×865×680 mm

Weighing pan dimensions

210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option)

Verification scale interval [e]

1 mg

Tare Range

-52 mg

Femto Price : $7,700.00 ~~$9,057.00~~

SKU : rw-wl-110-0017

View Details

Radwag Xa 110.5Y.f Analytical Balance

Packaging dimensions

510×865×680 mm

Weighing pan dimensions

210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option)

Verification scale interval [e]

1 mg

Tare Range

-110 mg

Femto Price : $7,990.00 ~~$9,397.00~~

SKU : rw-wl-110-0018

View Details

Packaging dimensions	510×865×680 mm
Weighing pan dimensions	210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option)
Verification scale interval [e]	1 mg
Tare Range	-52 mg
Standard repeatability	0.01 mg
Standard minimum weight	1.4 mg
Stabilization Time	5 s (30 s for filters)
Readability	0.01 mg
Protection class	IP 43
Power Supply	Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.1A max
Permissible repeatability [Max]	0.02 mg
Permissible repeatability [5% Max]	0.01 mg
Adjustment	internal (automatic)
OIML Class	I
Net Weight	12.7 kg
Minimum load	1 mg
Linearity ±	±0.03 mg
Leveling system	semi-automatic - LevelSENSING
Gross weight	25 kg
Eccentric load deviation	0.03 mg
Delivery Components	Analytical Balance, weighing pan, weighing pan for filters, weighing pan shield, centring ring, bottom cover, brush, fabric dust cover, power supply.
Communication Interface	2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi^®
Maximum Capacity	52 g

Packaging dimensions	510×865×680 mm
Weighing pan dimensions	210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option)
Verification scale interval [e]	1 mg
Tare Range	-110 mg
Standard repeatability	0.02 mg
Standard minimum weight	1.4 mg
Stabilization Time	5 s (30 s for filters)
Readability	0.01 mg
Protection class	IP 43
Power Supply	Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.1A max
Permissible repeatability [Max]	0.03 mg
Permissible repeatability [5% Max]	0.01 mg
Adjustment	internal (automatic)
OIML Class	I
Net Weight	12.7 kg
Minimum load	1 mg
Linearity ±	±0.06 mg
Leveling system	semi-automatic - LevelSENSING
Gross weight	25 kg
Eccentric load deviation	0.06 mg
Delivery Components	Analytical Balance, weighing pan, weighing pan for filters, weighing pan shield, centring ring, bottom cover, brush, fabric dust cover, power supply.
Communication Interface	2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi^®
Maximum Capacity	110 g
